☀Emitter: 1x Luminus SST40 LED 6000-6500K
☀Switch Type: Reverse Clicky Tail Switch
☀Reflector: TIR Lens
☀Operating voltage: 3.0 V – 4.2V
☀Battery options: 1x 18650 Li-Ion battery

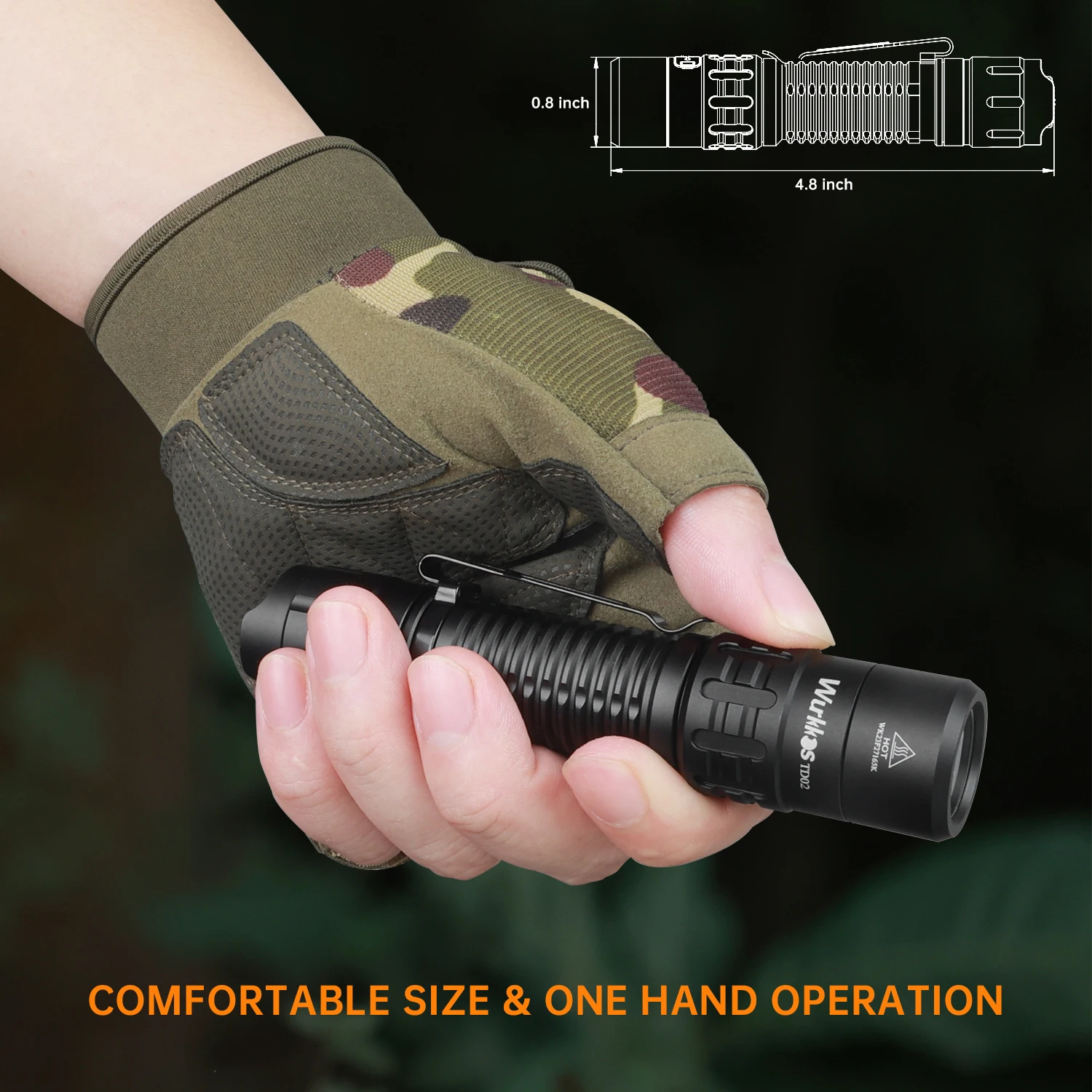

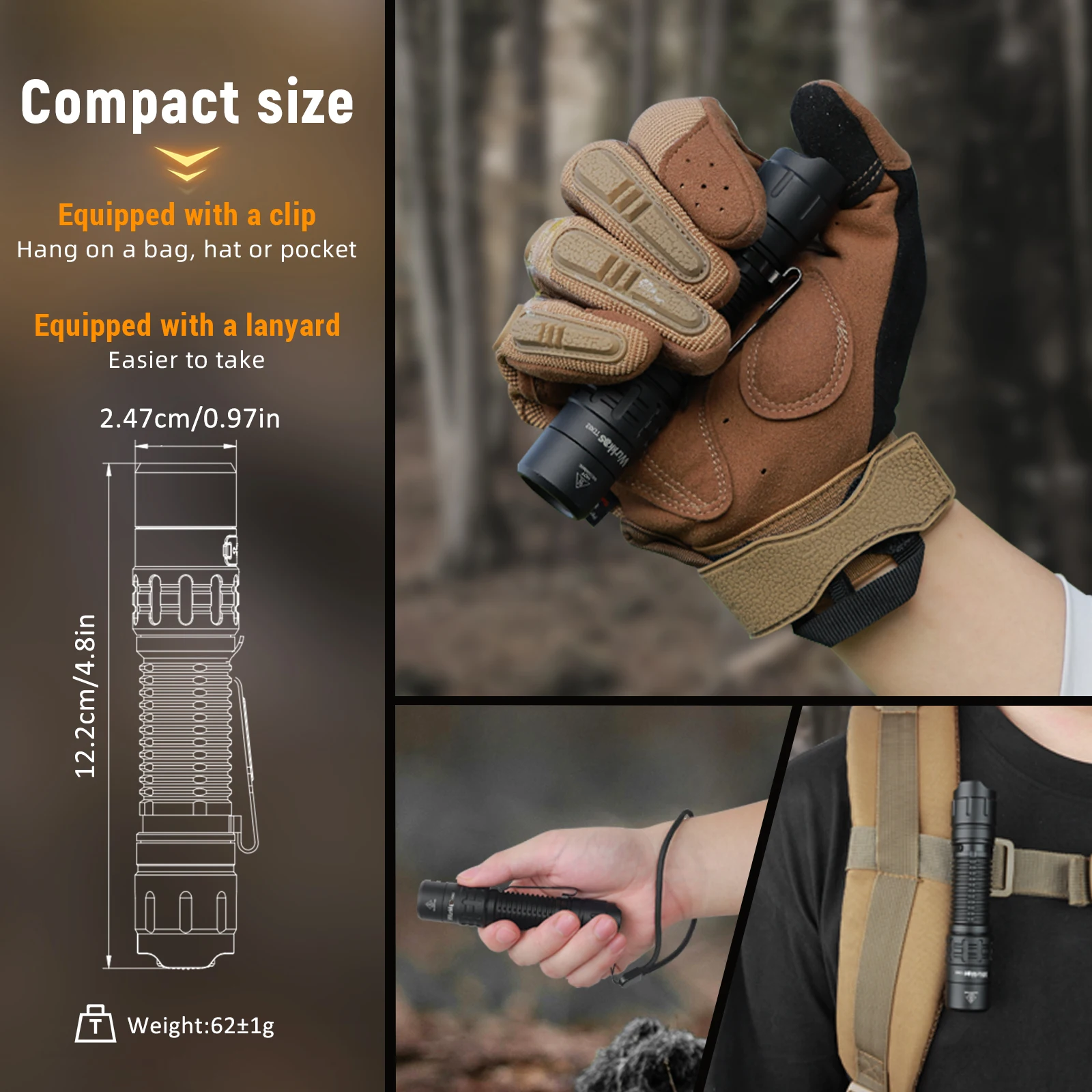

☀Dimension: 122mm (length) * 24.7mm (head diameter)
☀Weight: 62 ±1 gram (without battery)
☀Flashlight body: Aerospace grade 6061 grade aluminum alloy, CNC manufactured to hard-anodized to military grade specification type III, anti-abrasive finish to get solid built body, anti-crash geometry and better heat exchange.
☀Toughened mineral glass lens

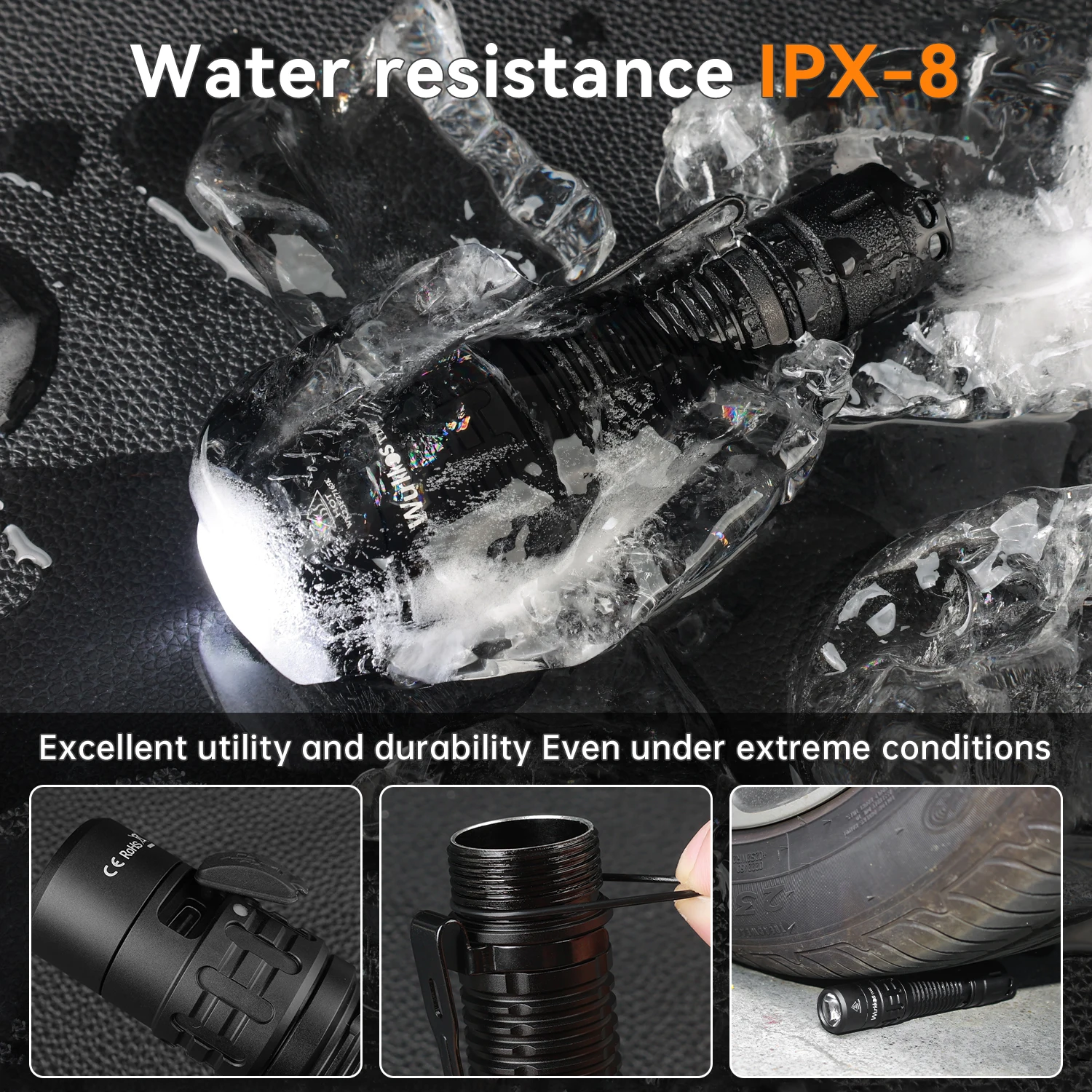

☀Water resistance i.a.w. IPX-8
☀Mode Memory: memorizes the last brightness level used in the general modes
☀Reverse polarity protection to protect against improper battery installation.

Operation Instructions

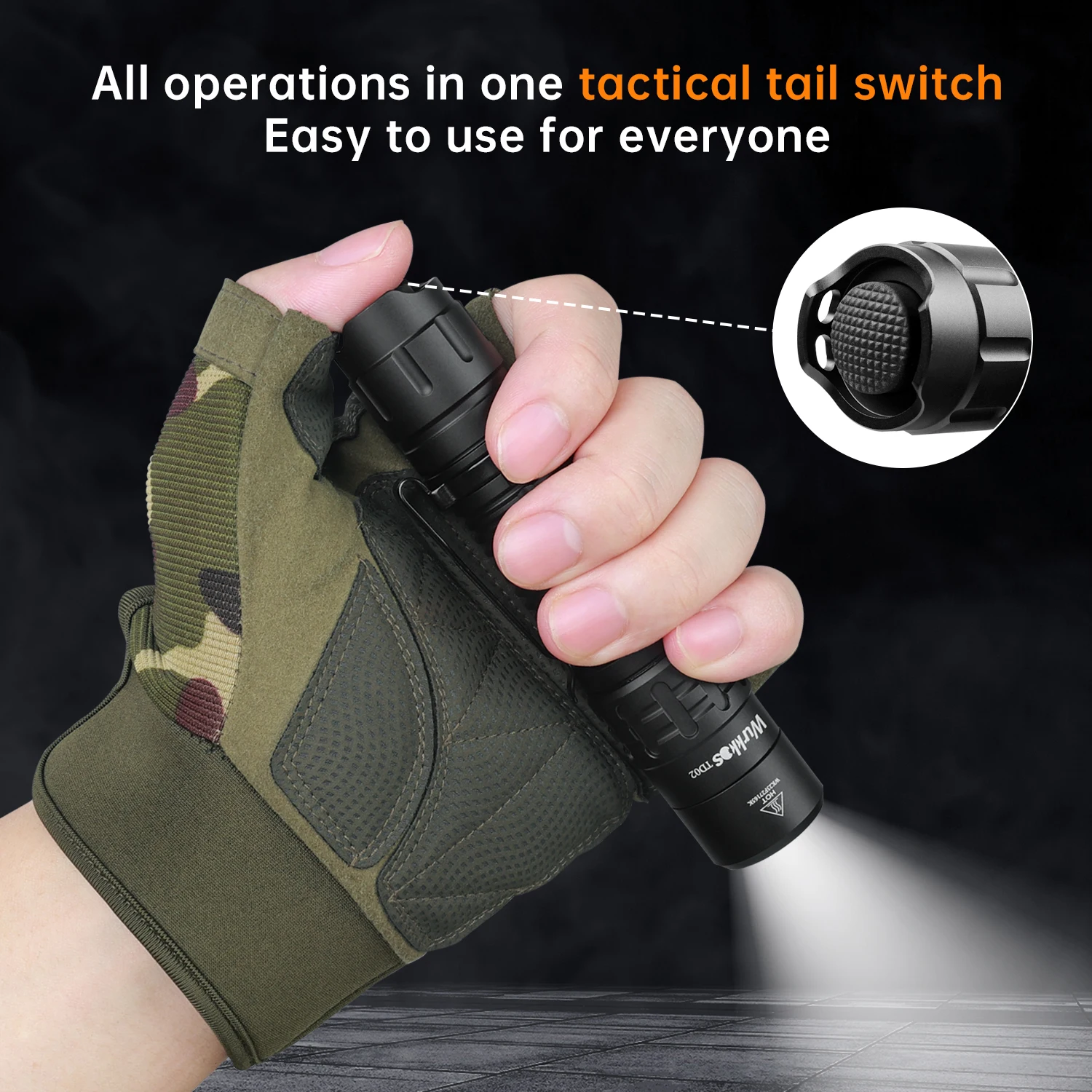

The TD02 flashlight operate by one tactical tail switch, easy to use for every one.

When the Flashlight is OFF:
Click the tail switch to turn the flashlight on (enter memory mode), reclick the tail switch to turn it off.
When the Flashlight is ON:
Tap on the tail switch to cycle ECO/Low/ Medium/High/Turbo mode(Please note that when lightly pressing the gear cycle, the interval between each gentle press should be greater than 0.5s).
Flash Mode: Fast double or a couple time press the tail switch to active strobe mode(please note the interval between consecutive taps is less than 0.3s).

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning TD02 on.
☀Green = remaining battery level is about 50-100%.
☀Red = remaining battery level is about 20-50%.
☀Flashing Red = critical power (less than 20%), replace or recharge battery as soon as possible.

Please note the power indicator will remain flash red if the battery power is lower than 20% when the TD02 flashlight on.
